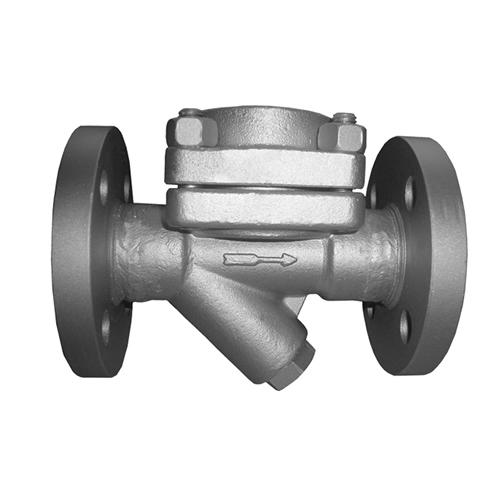

This type of thermostatic steam traps works by the welded stainless steel thermostatic element expanding with beat and contracting with cold. When the air and condensation water is getting into the valve body, the valve is in the “open” status. And after they have gotten into it. The thermostatic element will expand and dose the steam trap tartly.

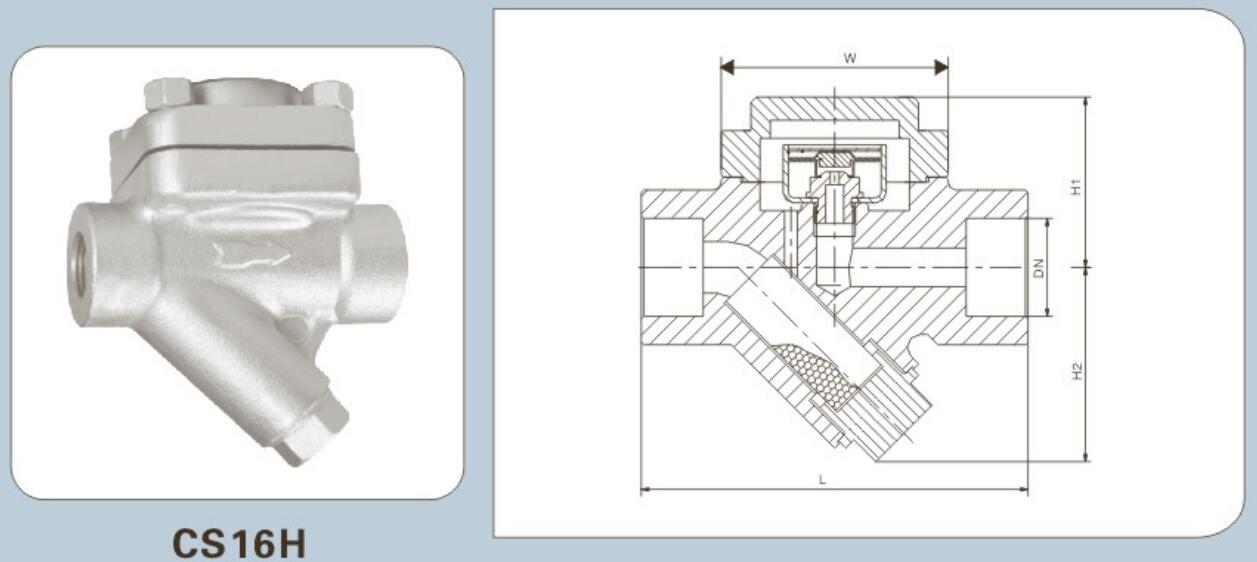

Structure characteristic
1.lt is excellent in air discharge capacity, and is resistant to overheating steam and water hammer.
2.lt has a certain circled operation when the temperature is too low during a certain scale of pressure.
3.The valve body is loaded with syphon, which can be one single unit, or even units, or even multi units. It can also be applied into the occasions which requires for large discharge capacity.
4.lt is equipped with temperature-sensing element and is strong in corrosion res stance,which makes the valves much durable in service.
5,The valve body can be WCB or Stainless steel with small size and light weight .Vertical installation will show the Dost performance cf valves, white they can also 0G installed in any angle.
This type of thermostatic steam traps works by the welded stainless steel thermostatic element expanding with beat and contracting with cold. When the air and condensation water is getting into the valve body, the valve is in the “open” status. And after they have gotten into it. The thermostatic element will expand and dose the steam trap tartly.
Main application
Sylphon type steam trap ts widely applied in hot steam main line, steam-traced pipe, dryer and industrial heating steam equipment system and so on.
