Bolted Cover, Swing Type Disc
Design and manufacture： API 600 and BS 1668
Face-to-Face dimension ASME B16 10
Flanged dimension： 24・ and smaller valves： ASMEB16 5 26* and larger valves： ASME B 16 47 series A and B
Bolted Cover, Swing Type Disc
Design and manufacture: API 600 BS1868
Face-to-Face dimension: ASME B16.10
Flanged End: 24'' and smaller to ASME B16.5 26'' and larger to ASME B16.47 series A and B
B.W. End： ASME B16.25
Inspection and Test: API598
Temperature and Pressure: ASME B16.34
Shell Wall Thickness: 24'' and smaller to API 600
26''and larger to manufacturer's standard
|

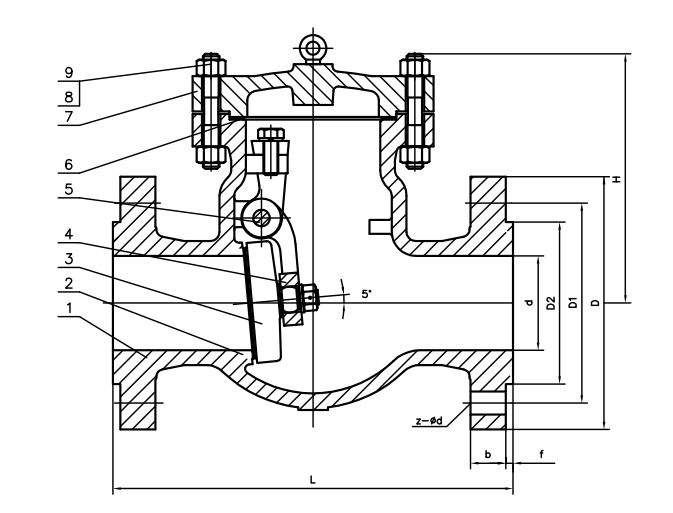

No |
Parts |
|
Material |
|
1 |
Body |
|
ASTM A351 CF8 |
|
2 |
Seat |
|
Integral Seat |
|
3 |
Disc |
|
ASTM A351 CF8 |
|
4 |
Hinge |
|
ASTM A351 CF8 |
|
5 |
Hinge Pin |
|
ASTM A276-304 |
|
6 |
Gasket |
|
SS304+GRAPHIT |
|
7 |
Bonnet |
|
ASTM A351 CF8 |
|
8 |
Bonnet Nut |
|
ASTM A193 Gr. 8 |
|
9 |
Bonnet Bolt |
|
ASTM A194 GR.B8 |
|
Size |
in |
2'' |
2 1/2'' |
3'' |
4'' |
5'' |
6'' |
8'' |
10'' |
12'' |
14'' |
16'' |
18'' |
20'' |
24'' |
|
mm |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
|
|
L (RF) |
in |
8 |
8.5 |
9.5 |
11.5 |
13 |
14 |
19.5 |
24.5 |
27.5 |
31 |
34 |
38.5 |
38.5 |
51 |
|
mm |
203 |
216 |
241 |
292 |
330 |
356 |
495 |
622 |
698 |
787 |
864 |
978 |
978 |
1295 |
|
|
L2 (RTJ) |
in |
8.5 |
9 |
10 |
12 |
13.5 |
14.5 |
20 |
25 |
28 |
31.5 |
34.5 |
39 |
39 |
51.5 |
|
mm |
216 |
229 |
254 |
305 |
343 |
369 |
508 |
635 |
711 |
800 |
877 |
991 |
991 |
1308 |
|
|
H (Open) |
in |
6.88 |
7 |
7.5 |
8.63 |
9.25 |
12.75 |
15.13 |
17.63 |
21.25 |
22 |
24.63 |
25.63 |
26.63 |
34.63 |
|
mm |
175 |
178 |
191 |
219 |
235 |
324 |
384 |
448 |
540 |
559 |
626 |
651 |
676 |
880 |
|
|
D |
mm |
150 |
180 |
190 |
230 |
255 |
280 |
345 |
405 |
485 |
535 |
595 |
635 |
700 |
815 |
|
D1 |
mm |
120.7 |
139.7 |
152.4 |
190.5 |
215.9 |
241.3 |
298.5 |
362 |
431.8 |
476.3 |
539.8 |
577.9 |
635 |
749.3 |
|
D2 |
mm |
92.1 |
104.8 |
127 |
157.2 |
185.7 |
215.9 |
269.9 |
323.8 |
381 |
412.8 |
469.9 |
533.4 |
584.2 |
692.2 |
|
b |
mm |
17.5 |
20.7 |
22.3 |
22.3 |
22.3 |
23.9 |
27 |
28.6 |
30.2 |
33.4 |
35 |
38.1 |
41.3 |
46.1 |
|
f |
mm |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
|
N- Φd |
4-Φ19 |
4-Φ19 |
4-Φ19 |
8-Φ19 |
8-Φ22 |
8-Φ22 |
8-Φ22 |
12-Φ25.4 |
12-Φ25.4 |
12-Φ28.5 |
16-Φ28.5 |
16-Φ32 |
20-Φ32 |
20-Φ35 |
|
|
WT (KG) RF |
14.5 |
20.7 |
24.4 |
39.5 |
54.6 |
66.8 |
118 |
192.5 |
291 |
321.5 |
588 |
762 |
- |
- |
|
|
SWING CHECK VALVE 150LB RF |
|||
|
Performance Specification |
|||
|
Test |
Shell Test |
3 |
Mpa |
|
Back Seal Test |
- |
||
|
Seal Test |
2.2 |
||
|
Air Test |
- |
||
|
Working Temp |
-25~425°C |
||
|
Media: Water, oil & gas |
|||
