Bolted Bonnet, Outside Screw & Yoke, Rising Stem， Flexible Wedge
Design and manufacture: API 600 API 603
Face-to-Face dimension: ASME B16.10,
Flanged End: ASME B16.5
Inspection and Test: API598
Design and manufacture: API 600 API 603
Face-to-Face dimension: 36"and smaller to ASME B16.10, 40"and larger to manufacturer's standard
Flanged End: 24'' and smaller to ASME B16.5 26'' and larger to ASME B16.47 series A
B.W. End： ASME B16.25
Inspection and Test: API598
Temperature and Pressure: ASME B16.34
Shell Wall Thickness: 24'' and smaller to API 600
26''and larger to manufacturer's standard
8''and smaller valves have a one-piece bonnet and yoke design
10'' and larger valves have a split bonnet and yoke design.
|

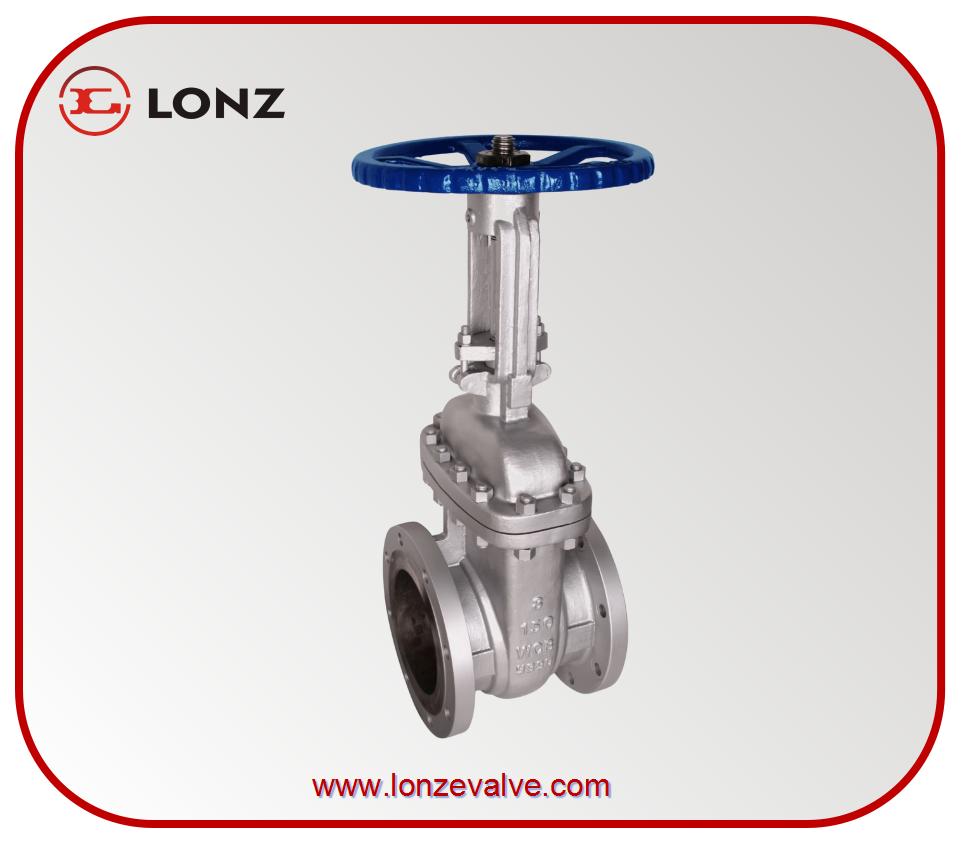

GATE VALVE 150LB RF |
|||
|
Performance Specification |
|||
|
Test |
Inentsity Test |
3 |
Mpa |
|
Back Seal Test |
2.2 |
||
|
Seal Test |
2.2 |
||
|
Air Test |
0.6 |
||
|
Working Temp |
-25~425°C |
||
|
Media: Water, oil & gas |
|||
| NO | Parts | Mat'l |
|
1 |
Body |
ASTM A216 Gr. WCB |
| 2 | Seat ring | ASTM A105+13CR |
| 3 | Wedge | ASTM A216 Gr. WCB+13CR |
| 4 | Stem | ASTM A182 F6a |
| 5 | Gasket | Graphit +SS304 |
| 6 | Stud | ASTM A193 Gr. B7 |
| 7 | Nut | ASTM A194 Gr. 2H |
| 8 | Bonnet | ASTM A216 Gr. WCB |
| 9 | Backseat | ASTM A276 410 |
| 10 | Packing | Graphit |
| 11 | Pin | C.S |
| 12 | Gland Bolt | ASTM A193 Gr. B7 |
| 13 | Gland Nut | ASTM A194 Gr. 2H |
| 14 | Bushing | ASTM A276 410 |
| 15 | Gland | ASTM A216 Gr. WCB |
| 16 | Stem Nut | Aluminum Bronze |
| 17 | Bushing | C.S. |
| 18 | Handwheel | Malleable Iron |
| 19 | H.W.lock nut | C.S. |
| 20 | Lubricator | Assembly |
Dimensions & Weights(150LB)
|
Size |
in |
2'' |
2 1/2'' |
3'' |
4'' |
5'' |
6'' |
8'' |
10'' |
12'' |
14'' |
16'' |
18'' |
20'' |
24'' |
|
mm |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
|
|
L (RF) |
in |
7 |
7.5 |
8 |
9 |
10 |
10.5 |
11.5 |
13 |
14 |
15 |
16 |
17 |
18 |
20 |
|
mm |
178 |
190 |
203 |
229 |
254 |
267 |
292 |
330 |
356 |
381 |
406 |
432 |
457 |
508 |
|
|
L1 (BW) |
in |
8.5 |
9.5 |
11.13 |
12 |
15 |
15.88 |
16.5 |
18 |
19.75 |
22.5 |
24 |
26 |
28 |
32 |
|
mm |
216 |
241 |
283 |
305 |
381 |
403 |
419 |
457 |
502 |
572 |
610 |
660 |
711 |
813 |
|
|
L2 (RTJ) |
in |
7.5 |
8 |
8.5 |
9.5 |
10.5 |
11 |
12 |
13.5 |
14.5 |
15.5 |
16.5 |
17.5 |
18.5 |
20.5 |
|
mm |
191 |
203 |
216 |
242 |
267 |
279 |
305 |
343 |
368 |
394 |
419 |
445 |
470 |
521 |
|
|
H (Open) |
in |
16.13 |
18.56 |
20.94 |
24.13 |
27.94 |
31.75 |
39 |
46.69 |
55.31 |
63.56 |
71.31 |
78.19 |
87 |
106.25 |
|
mm |
409 |
472 |
532 |
612 |
710 |
806 |
990 |
1186 |
1405 |
1615 |
1811 |
1986 |
2210 |
2698 |
|
|
Do |
in |
7.86 |
7.86 |
9.86 |
9.86 |
11.81 |
11.81 |
13.75 |
17.69 |
19.69 |
18.13 |
18.13 |
18.13 |
24 |
24 |
|
mm |
200 |
200 |
250 |
250 |
300 |
300 |
350 |
450 |
500 |
460 |
460 |
460 |
610 |
610 |
|
|
D |
mm |
150 |
180 |
190 |
230 |
255 |
280 |
345 |
405 |
485 |
535 |
595 |
635 |
700 |
815 |
|
D1 |
mm |
120.7 |
139.7 |
152.4 |
190.5 |
215.9 |
241.3 |
298.5 |
362 |
431.8 |
476.3 |
539.8 |
577.9 |
635 |
749.3 |
|
D2 |
mm |
92.1 |
104.8 |
127 |
157.2 |
185.7 |
215.9 |
269.9 |
323.8 |
381 |
412.8 |
469.9 |
533.4 |
584.2 |
692.2 |
|
b |
mm |
17.5 |
20.7 |
22.3 |
22.3 |
22.3 |
23.9 |
27 |
28.6 |
30.2 |
33.4 |
35 |
38.1 |
41.3 |
46.1 |
|
f |
mm |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
|
N- Φd |
4-Φ19 |
4-Φ19 |
4-Φ19 |
8-Φ19 |
8-Φ22 |
8-Φ22 |
8-Φ22 |
12-Φ25.4 |
12-Φ25.4 |
12-Φ28.5 |
16-Φ28.5 |
16-Φ32 |
20-Φ32 |
20-Φ35 |
|
|
WT (KG) RF |
15.6 |
19.1 |
27.06 |
41.12 |
50.7 |
66 |
108.55 |
159.5 |
264.5 |
361.5 |
449 |
622.5 |
786.5 |
1097 |
|
